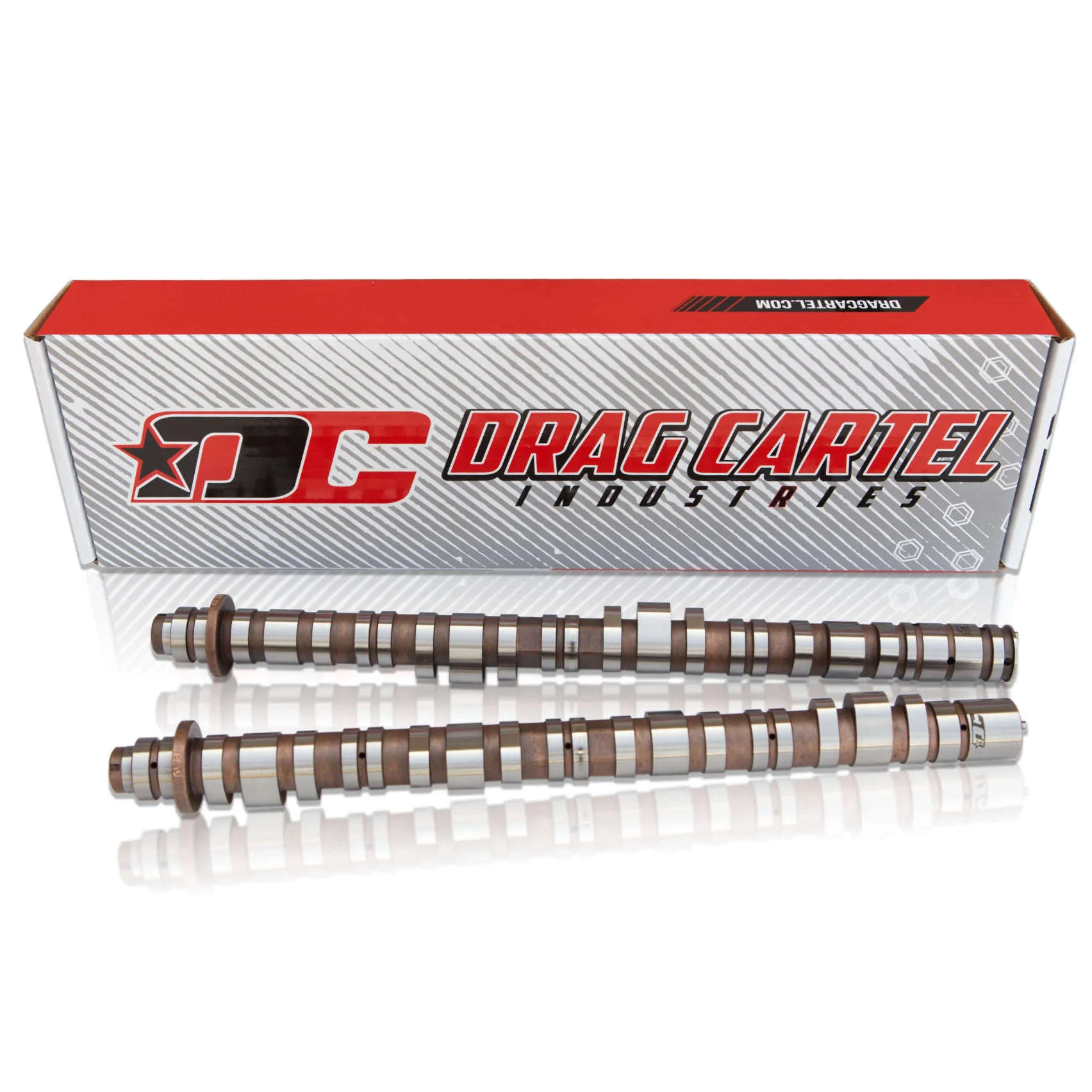

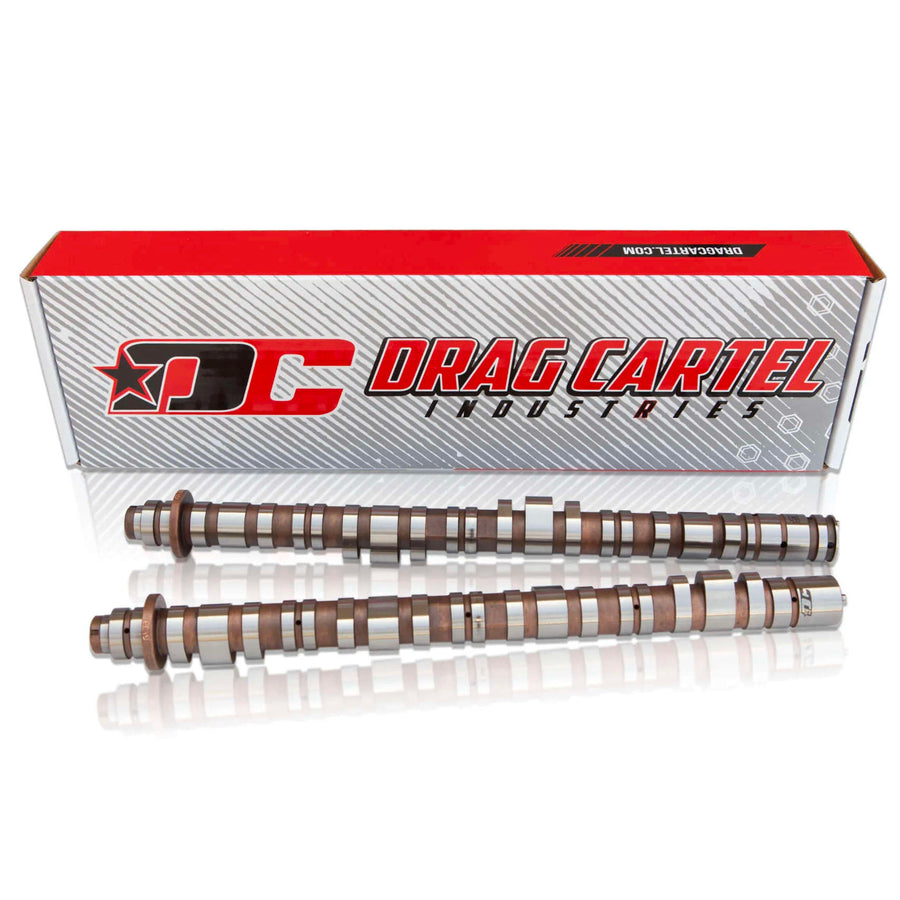

Drag Cartel Camshafts - DROP IN CAMS (DIC) K-Series

Drag Cartel Drop-In Cams (DIC) for Honda K-Series

Are you searching for the best camshaft upgrade for your K20 or K24 engine? The Drag Cartel Drop-In Cams (DIC) are the only cams on the market designed to deliver vast power gains without requiring an expensive valve train upgrade! Developed through years of high-end racing and rigorous dyno testing, these cams unlock the untapped potential of your K-series engine.

Why Choose Drag Cartel DIC Camshafts?

These cams are engineered specifically to maximize performance while maintaining OEM reliability, making them the ultimate "drop-in" solution for tuners and enthusiasts.

No Valve Train Upgrade Needed: Achieve significant horsepower and torque gains without the need for high-performance valve springs or retainers.

Superior Billet Material: Cams are made from aerospace-grade, 8620 steel billet material, ensuring the utmost rigidity and durability at extended RPM ranges.

Reduced Valve Float: The rigid 8620 billet construction helps stabilize the valve train, effectively reducing the possibility of valve float at high RPMs.

Precision Manufacturing: They are CNC ground on state-of-the-art cam grinders for perfect profile accuracy and superior performance.

Camshaft Specifications

The Drag Cartel DIC cams feature aggressive profiles to take full advantage of the K-series roller rocker valve train assembly.

Material: All-new 8620 Billet Steel

Intake Lobe Specs:

Low Speed Lobe: 250° Duration / 9.6 mm Lift

High Speed Lobe: 295° Duration / 12.7 mm Lift

Exhaust Lobe Specs:

Low Speed Lobe: 243° Duration / 8.4 mm Lift

High Speed Lobe: 288° Duration / 12.00 mm Lift

Installation Torque Specifications

Ensure proper installation and performance by adhering to the following torque specifications:

Intake Cam Gear Bolt: 83 lb-ft

Exhaust Cam Gear Bolt: 51 lb-ft

Pulse Plates: 29 lb-ft
